BUILT DIFFERENT, BUILT VAULT STRONG.
-
Style - Low-Pro | Width - 5ft. / 60" | Length - 8ft. / 97" | GVWR - 5200lbs. | GAWR - 3500lbs. |
Curb Weight - 1760lbs. | Payload - 3440lbs. | Dump Capacity - 3000lbs. | Tongue - 2" X 4" Tube Steel | Tongue Weight
(est.) - 265lbs. | Overall Length - 146" |
CROSS MEMBERS (16" ON CENTER) - 2" X 3" TUBE | LENGTH - 8FT. / 97" | WIDTH - 5FT. / 60" |
SIDEWALL HEIGHT - 16" | FLOOR HEIGHT - 29" | COUPLER HEIGHT - 18" |
-
Guarantee - OEM Component Warranty & 3 Year Limited
Structural
Coupler - 2-5/16" - Adjustable Coupler
Suspension - Equalized Leaf Spring
Fenders - 14ga. Formed Treadplate
Stake Pockets - 2" X 4" Tube
Gussets - Front & Rear 2" X 12" Dimension for Wall
Extension
Axles - Tandem - EZ Lube w/Galvanized Components
Tires - 15" Radial
Wheels - Black Powder Coat
Jack - Adjustable 7000lb., Top Wind Drop Leg
Spare Tire Mount - Standard Mount
Floor & Walls - 12ga. Smooth Steel
Battery - Interstate Deep Cycle Marine Battery
Electric Plug - 7-Pin Round
Wiring Harness - 3-Piece Plug & Play
Lighting - Amber & Red LED
Paint Finish - High Gloss Black Powder Coat
Lift System - (2) 3" X 30" Hydraulic Cylinders
Power Unit - 12v DC Hydraulic Pump - (3200 PSI Pwr Up)
(1500 PSI Pwr Down)
Control Box with Key Lock - Easy Front Access
Ramps - 80" C-Channel Fender Mounted Ramps
D-Rings - (5) 5000lb. D-Rings Welded Into Floor
Integrated Tarp Mount - Fully Covered Housing
-

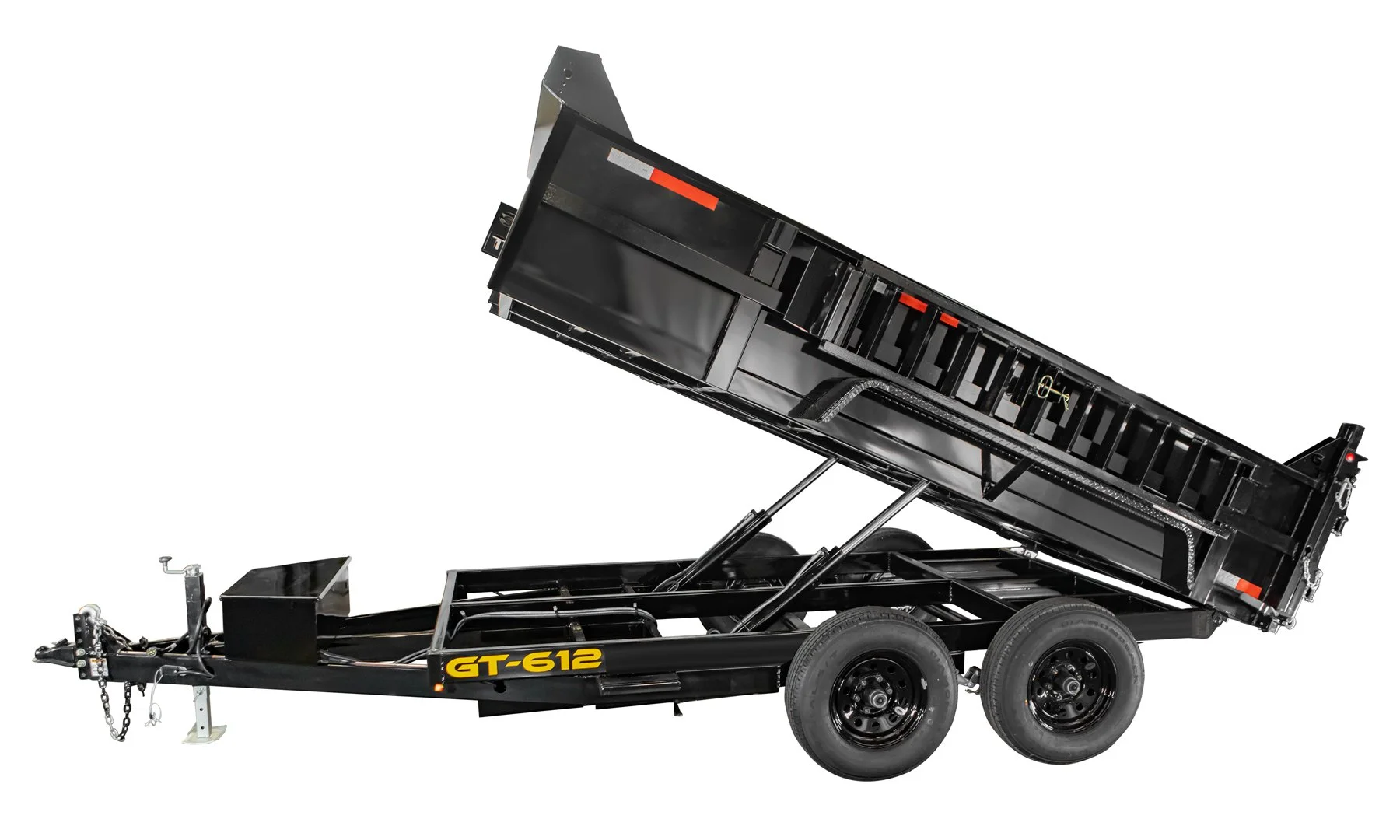

Style - Low-Pro | Width - 6ft. / 72" | Length - 12ft. / 144" | GVWR - 9990lbs. | GAWR - 5200lbs. |
Curb Weight - 3580lbs. | Payload - 6410lbs. | Dump Capacity - 6000lbs. | Tongue - 2" X 5" Tube | Tongue Weight (est.) -
500lbs. | Overall Length - 198" |
CROSS MEMBERS (16" ON CENTER) - 2" X 3" TUBE | LENGTH - 12FT. / 144" | WIDTH - 6FT. / 71.5" |
SIDEWALL HEIGHT - 24" | FLOOR HEIGHT - 29" | COUPLER HEIGHT - 18" |
-
Guarantee - OEM Component Warranty & 3 Year Limited
Structural
Coupler - 2-5/16" - Adjustable Coupler
Suspension - Equalized Leaf Spring
Fenders - 14ga. Formed Treadplate
Stake Pockets - 2" X 4" Tube
Gussets - Front & Rear 2" X 12" Dimension for Wall
Extension
Axles - Tandem - EZ Lube w/Galvanized Components
Tires - 15" Radial
Wheels - Black Powder Coat
Jack - Adjustable 7000lb., Top Wind Drop Leg
Spare Tire Mount - Standard Mount
Floor & Walls - 10ga. Smooth Steel
Battery - Interstate Deep Cycle Marine Battery
Electric Plug - 7-Pin Round
Wiring Harness - 3-Piece Plug & Play
Lighting - Amber & Red LED
Paint Finish - High Gloss Black Powder Coat
Lift System - (2) 3" X 30" Hydraulic Cylinders
Power Unit - 12v DC Hydraulic Pump - (3200 PSI Pwr Up)
(1500 PSI Pwr Down)
Control Box with Key Lock - Easy Front Access
Ramps - 80" C-Channel Fender mounted ramps
D-Rings - (5) 5000lb. D-Rings Welded Into Floor
Integrated Tarp Mount - Fully Covered Housing
Safety Chains - (2) Forged Slip Hook - 5/16"x35" 11700lbs.
Cap
-

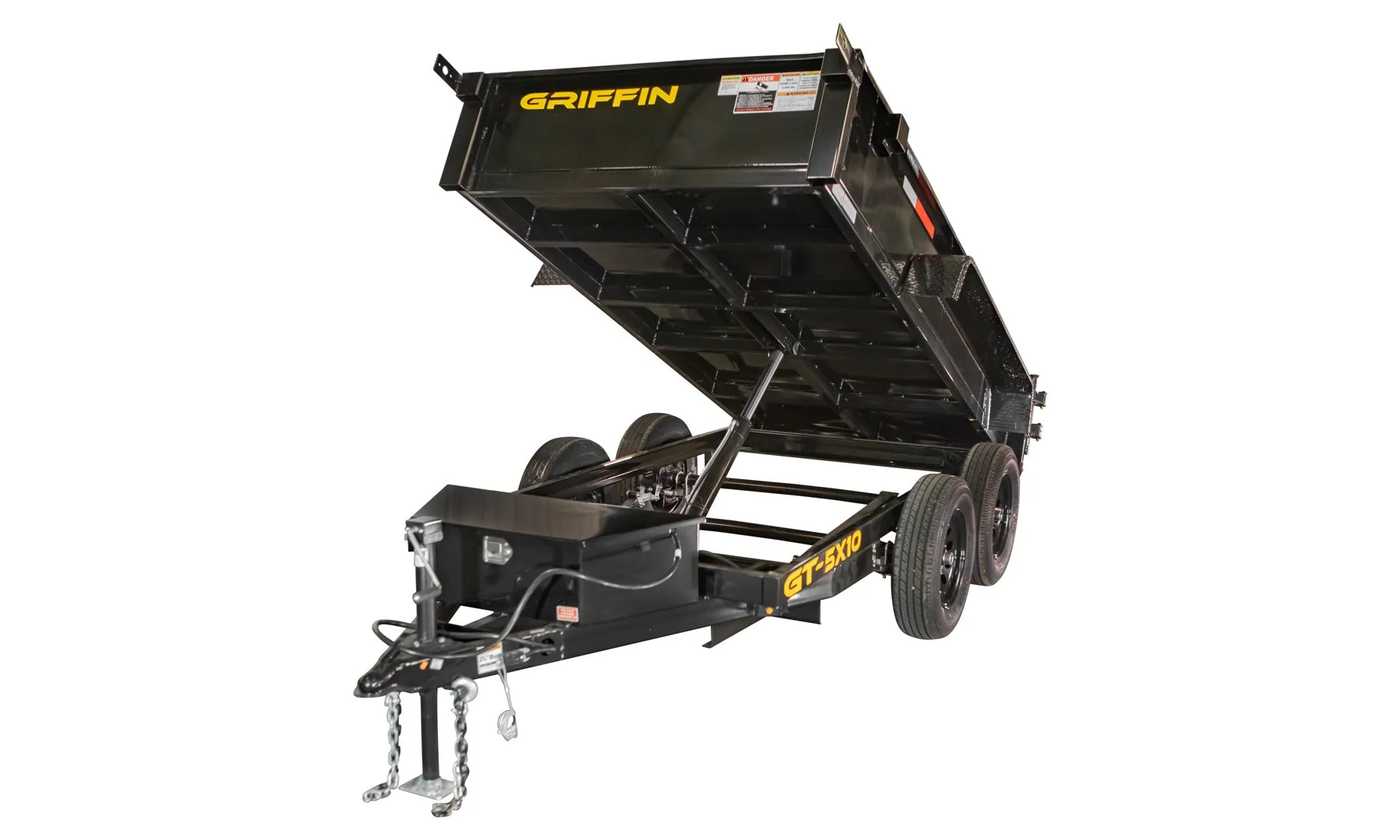

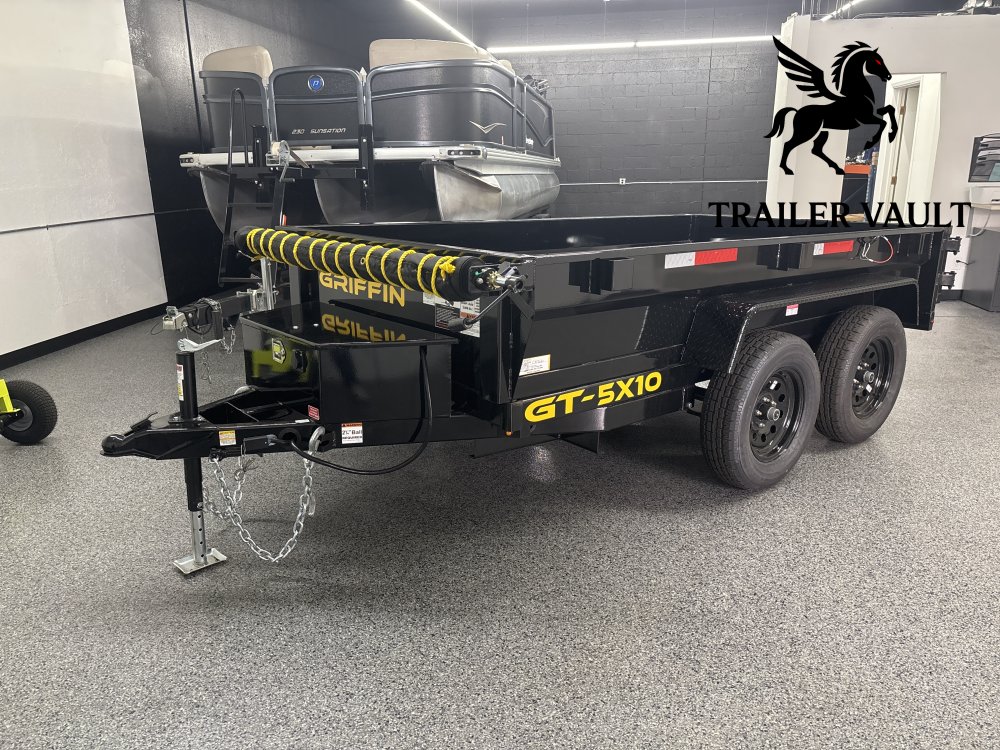

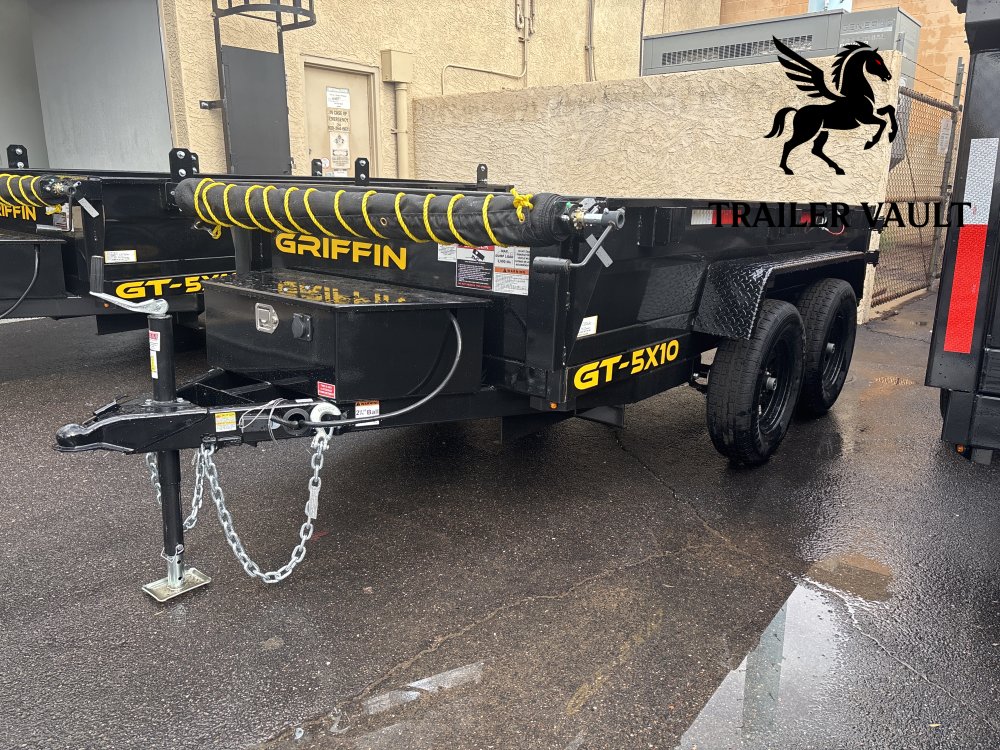

Style - Low-Pro | Width - 5ft. / 60" | Length - 10ft. / 120" | GVWR - 7000lbs. | GAWR - 3500lbs. |
Curb Weight - 1895lbs. | Payload - 5105lbs. | Dump Capacity - 3000lbs. | Tongue - 2" X 4" Tube Steel | Tongue Weight
(est.) - 280lbs. | Overall Length - 159" |
CROSS MEMBERS (16" ON CENTER) - 2" X 3" TUBE | LENGTH - 10FT. / 120" | WIDTH - 59.5" |
SIDEWALL HEIGHT - 16" | FLOOR HEIGHT - 29" | COUPLER HEIGHT - 18" |
-
Guarantee - OEM Component Warranty & 3 Year Limited
Structural
Coupler - 2-5/16" A-Frame Coupler
Suspension - Equalized Leaf Spring
Fenders - 14ga. Formed Treadplate
Stake Pockets - 2" X 4" Tube
Axles - Tandem - EZ Lube w/Galvanized Components
Tires - 15" Radial
Wheels - Black Powder Coat
Jack - Coupler Mounted, 5000lb. Top Wind
Spare Tire Mount - Standard Mount
Floor & Walls - 12ga. Smooth Steel
Battery - Interstate Deep Cycle Marine Battery
Electric Plug - 7-Pin Round
Wiring Harness - 3-Piece Plug & Play
Lighting - Amber & Red LED
Paint Finish - High Gloss Black Powder Coat
Lift System - (1) 3" X 30" Hydraulic Cylinder
Power Unit - 12v DC Hydraulic Pump - (3200 PSI Pwr Up)
(1500 PSI Pwr Down)
Control Box with Key Lock - Easy Front Access
Integrated Tarp Mount - Tarp Kit Ready
Safety Chains - (2) S-Hook -1/4" X 27" 5200lbs. Cap
-

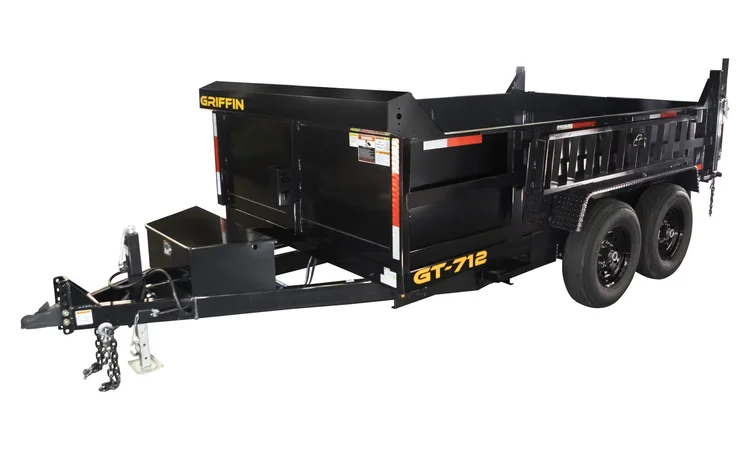

Style - Low-Pro | Width - 7ft. / 83" | Length - 12ft. / 144" | GVWR - 12000lbs. | GAWR - 6000lbs. |
Curb Weight - 3620lbs. | Payload - 8380lbs. | Dump Capacity - 8000lbs. | Tongue - 2" X 5" Tube | Tongue Weight (est.) -
580lbs. | Overall Length - 198" |
CROSS MEMBERS (16" ON CENTER) - 2" X 3" TUBE | LENGTH - 12FT. / 144" | WIDTH - 7FT. / 82.5" |
SIDEWALL HEIGHT - 24" | FLOOR HEIGHT - 29" | COUPLER HEIGHT - 18" |
-
Guarantee - OEM Component Warranty & 3 Year Limited
Structural
Coupler - 2-5/16" - Adjustable Coupler
Suspension - Equalized Leaf Spring
Fenders - 14ga. Formed Treadplate
Stake Pockets - 2" X 4" Tube
Gussets - Front & Rear 2" X 12" Dimension for Wall
Extension
Axles - Tandem - EZ Lube w/Galvanized Components
Tires - 16" Radial
Wheels - Black Powder Coat
Jack - Adjustable 7000lb., Top Wind Drop Leg
Spare Tire Mount - Standard Mount
Floor & Walls - 10ga. Smooth Steel
Battery - Interstate Deep Cycle Marine Battery
Electric Plug - 7-Pin Round
Wiring Harness - 3-Piece Plug & Play
Lighting - Amber & Red LED
Paint Finish - High Gloss Black Powder Coat
Lift System - (2) 3" X 30" Hydraulic Cylinders
Power Unit - 12v DC Hydraulic Pump - (3200 PSI Pwr Up)
(1500 PSI Pwr Down)
Control Box with Key Lock - Easy Front Access
Ramps - 80" C-Channel Fender mounted ramps
D-Rings - (5) 5000lb. D-Rings Welded Into Floor
Integrated Tarp Mount - Fully Covered Housing
Safety Chains - (2) Forged Slip Hook - 5/16"x35" 11700lbs.
Cap
-
Style - Low-Pro | Width - 6ft. / 72" | Length - 10ft. / 120" | GVWR - 9990lbs. | GAWR - 5200lbs. |
Curb Weight - 2720lbs. | Payload - 7270lbs. | Dump Capacity - 6000lbs. | Tongue - 2" X 5" Tube | Tongue Weight (est.) -
410lbs. | Overall Length - 170" |
CROSS MEMBERS (16" ON CENTER) - 2" X 3" TUBE | LENGTH - 10FT. / 120" | WIDTH - 6FT. / 71.5" |
SIDEWALL HEIGHT - 19" | FLOOR HEIGHT - 29" | COUPLER HEIGHT - 18" |
-
Guarantee - OEM Component Warranty & 3 Year Limited
Structural
Coupler - 2-5/16" - Adjustable Coupler
Suspension - Equalized Leaf Spring
Fenders - 14ga. Formed Treadplate
Stake Pockets - 2" X 4" Tube
Gussets - Front & Rear 2" X 12" Dimension for Wall
Extension
Axles - Tandem - EZ Lube w/Galvanized Components
Tires - 15" Radial
Wheels - Black Powder Coat
Jack - Adjustable 7000lb., Top Wind Drop Leg
Spare Tire Mount - Standard Mount
Floor & Walls - 12ga. Smooth Steel
Battery - Interstate Deep Cycle Marine Battery
Electric Plug - 7-Pin Round
Wiring Harness - 3-Piece Plug & Play
Lighting - Amber & Red LED
Paint Finish - High Gloss Black Powder Coat
Lift System - (2) 3" X 30" Hydraulic Cylinders
Power Unit - 12v DC Hydraulic Pump - (3200 PSI Pwr Up)
(1500 PSI Pwr Down)
Control Box with Key Lock - Easy Front Access
Ramps - 80" C-Channel Fender Mounted Ramps
D-Rings - (5) 5000lb. D-Rings Welded Into Floor
Integrated Tarp Mount - Fully Covered Housing

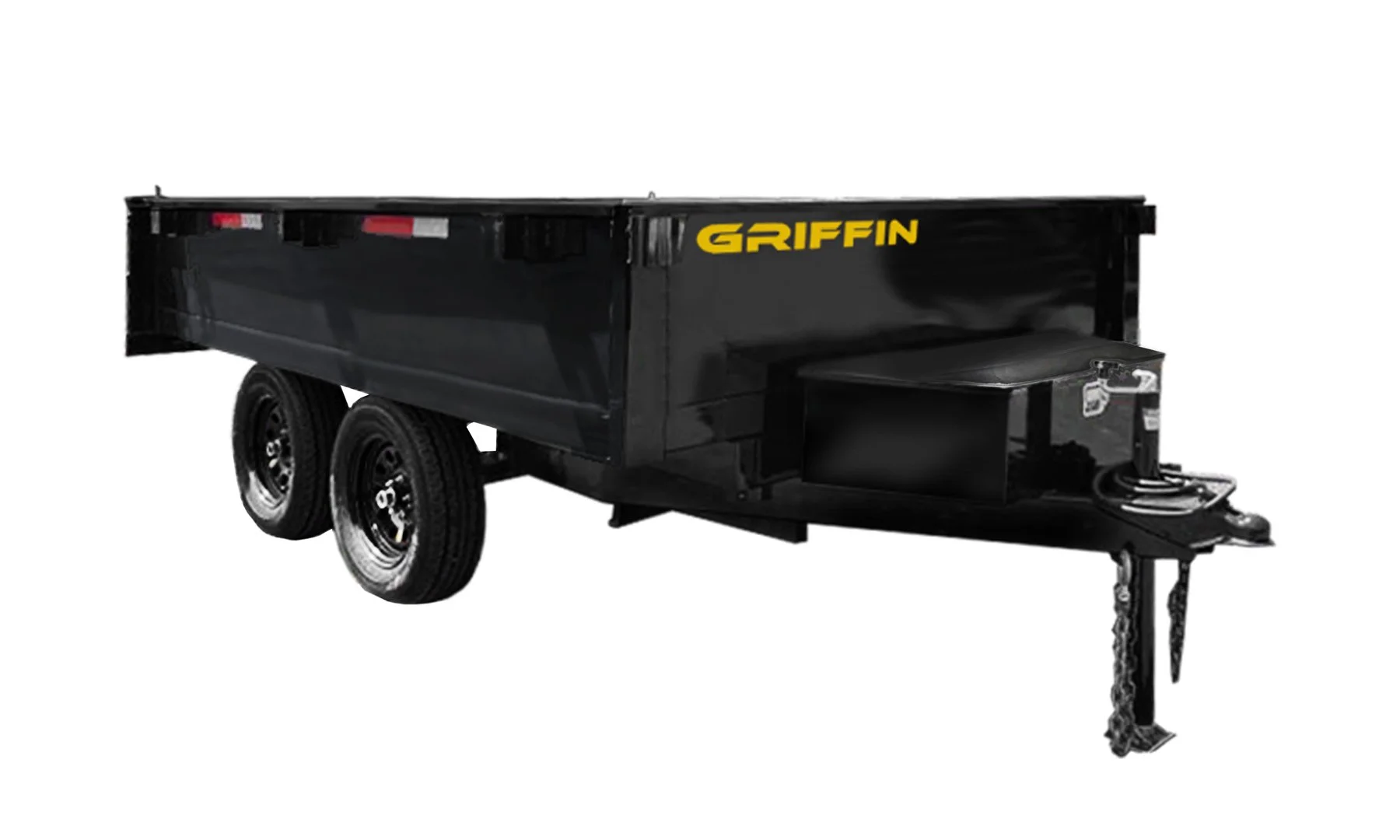

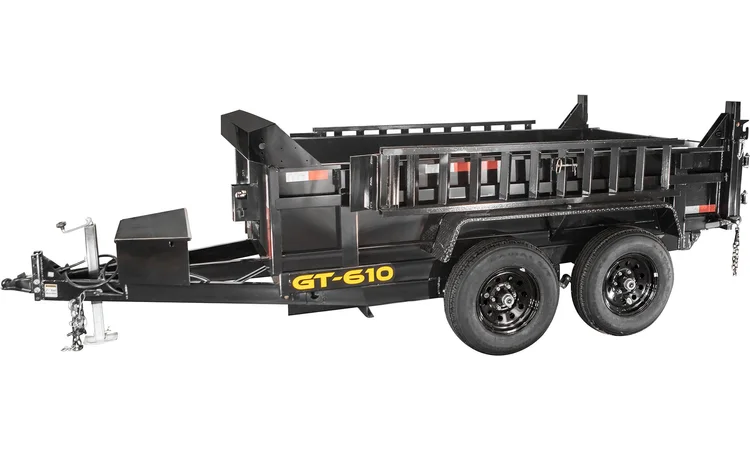

GT-610 $4,918.00
CHASSIS SPECS: Style - Low-Pro | Width - 6ft. / 72" | Length - 10ft. / 120" | GVWR - 7000lbs. | GAWR - 3500lbs. |
Curb Weight - 2004lbs. | Payload - 4996lbs. | Dump Capacity - 3000lbs. | Tongue - 2" X 4" Tube Steel | Tongue Weight
(est.) - 300lb. | Overall Length - 159" |
BODY SPECS: CROSS MEMBERS (16" ON CENTER) - 2" X 3" TUBE | LENGTH - 10FT. / 120" | WIDTH - 7FT. / 82.5" |
SIDEWALL HEIGHT - 24" | FLOOR HEIGHT - 29" | COUPLER HEIGHT - 18" |
STANDARD FEATURES
Guarantee - OEM Component Warranty & 3 Year Limited
Structural
Coupler - 2-5/16" A-Frame Coupler
Suspension - Equalized Leaf Spring
Stake Pockets - 2" X 4" Tube
Axles - Tandem - EZ Lube w/Galvanized Components
Tires - 15" Radial
Wheels - Black Powder Coat
Jack - Coupler Mounted, 5000lb. Top Wind
Spare Tire Mount - Standard Mount
Safety Chains - (2) S-Hook -1/4" X 27" 5200lbs. Cap
Floor & Walls - 12ga. Smooth Steel
Battery - Interstate Deep Cycle Marine Battery
Electric Plug - 7-Pin Round
Wiring Harness - 3-Piece Plug & Play
Lighting - Amber & Red LED
Paint Finish - High Gloss Black Powder Coat
Lift System - (1) 3" X 30" Hydraulic Cylinder
Power Unit - 12v DC Hydraulic Pump - (3200 PSI Pwr Up)
(1500 PSI Pwr Down)
Control Box with Key Lock - Easy Front Access
Integrated Tarp Mount - Tarp Kit Ready
Safety Chains - (2) Forged Slip Hook - 5/16"x35" 11700lbs.
Cap
-

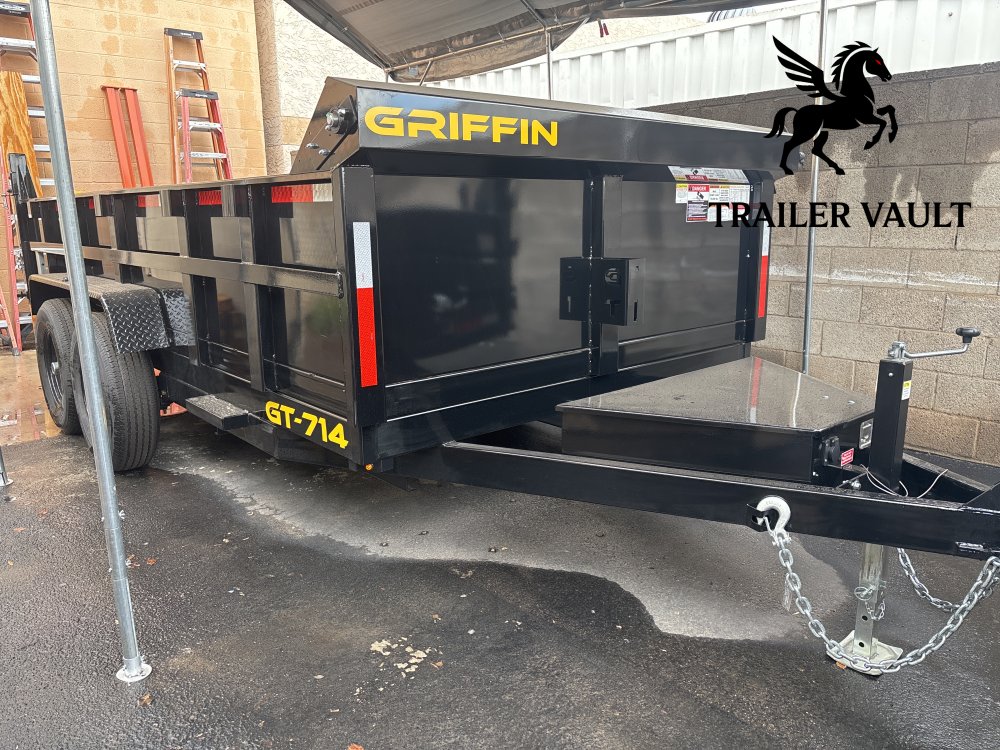

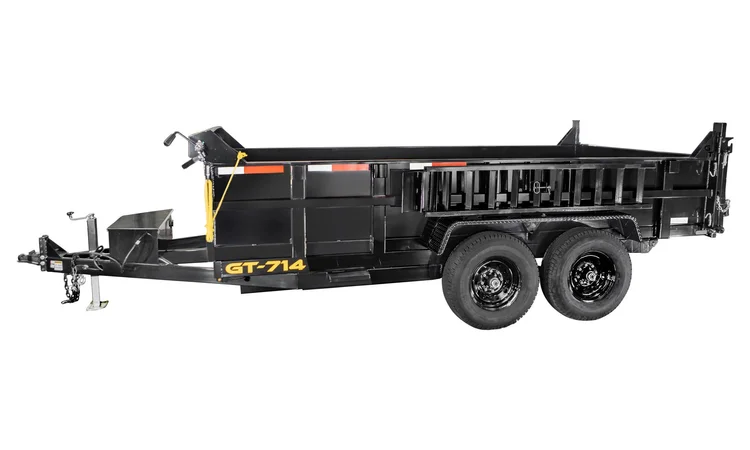

Style - Low-Pro | Width - 7ft. / 83" | Length - 14ft. / 168" | GVWR - 14000lbs. | GAWR - 7000lbs. |
Curb Weight - 3904lbs. | Payload - 10096lbs. | Dump Capacity - 10000lbs. | Tongue - 2" X 5" Tube | Tongue Weight (est.) -
580lbs. | Overall Length - 222" |
CROSS MEMBERS (16" ON CENTER) - 2" X 3" TUBE | LENGTH - 14FT. / 168" | WIDTH - 7FT. / 82.5" |
SIDEWALL HEIGHT - 24" | FLOOR HEIGHT - 29" | COUPLER HEIGHT - 18" |
-
Guarantee - OEM Component Warranty & 3 Year Limited
Structural
Coupler - 2-5/16" - Adjustable Coupler
Suspension - Equalized Leaf Spring
Fenders - 14ga. Formed Treadplate
Stake Pockets - 2" X 4" Tube
Gussets - Front & Rear 2" X 12" Dimension for Wall
Extension
Axles - Tandem - EZ Lube w/Galvanized Components
Tires - 16" Radial
Wheels - Black Powder Coat
Jack - Adjustable 7000lb., Top Wind Drop Leg
Spare Tire Mount - Standard Mount
Floor & Walls - 10ga. Smooth Steel
Battery - Interstate Deep Cycle Marine Battery
Electric Plug - 7-Pin Round
Wiring Harness - 3-Piece Plug & Play
Lighting - Amber & Red LED
Paint Finish - High Gloss Black Powder Coat
Lift System - (2) 3" X 30" Hydraulic Cylinders
Power Unit - 12v DC Hydraulic Pump - (3200 PSI Pwr Up)
(1500 PSI Pwr Down)
Control Box with Key Lock - Easy Front Access
Ramps - 80" C-Channel Fender mounted ramps
D-Rings - (5) 5000lb. D-Rings Welded Into Floor
Integrated Tarp Mount - Fully Covered Housing
Safety Chains - (2) Forged Slip Hook - 5/16"x35" 11700lbs.
Cap
-
Style - Low-Pro | Width - 6ft. / 72" | Length - 10ft. / 120" | GVWR - 7000lbs. | GAWR - 3500lbs. |
Curb Weight - 2004lbs. | Payload - 4996lbs. | Dump Capacity - 3000lbs. | Tongue - 2" X 4" Tube Steel | Tongue Weight
(est.) - 300lb. | Overall Length - 159" |
CROSS MEMBERS (16" ON CENTER) - 2" X 3" TUBE | LENGTH - 10FT. / 120" | WIDTH - 7FT. / 82.5" |
SIDEWALL HEIGHT - 24" | FLOOR HEIGHT - 29" | COUPLER HEIGHT - 18" |
-
Guarantee - OEM Component Warranty & 3 Year Limited
Structural
Coupler - 2-5/16" A-Frame Coupler
Suspension - Equalized Leaf Spring
Stake Pockets - 2" X 4" Tube
Axles - Tandem - EZ Lube w/Galvanized Components
Tires - 15" Radial
Wheels - Black Powder Coat
Jack - Coupler Mounted, 5000lb. Top Wind
Spare Tire Mount - Standard Mount
Safety Chains - (2) S-Hook -1/4" X 27" 5200lbs. Cap
Floor & Walls - 12ga. Smooth Steel
Battery - Interstate Deep Cycle Marine Battery
Electric Plug - 7-Pin Round
Wiring Harness - 3-Piece Plug & Play
Lighting - Amber & Red LED
Paint Finish - High Gloss Black Powder Coat
Lift System - (1) 3" X 30" Hydraulic Cylinder
Power Unit - 12v DC Hydraulic Pump - (3200 PSI Pwr Up)
(1500 PSI Pwr Down)
Control Box with Key Lock - Easy Front Access
Integrated Tarp Mount - Tarp Kit Ready
-

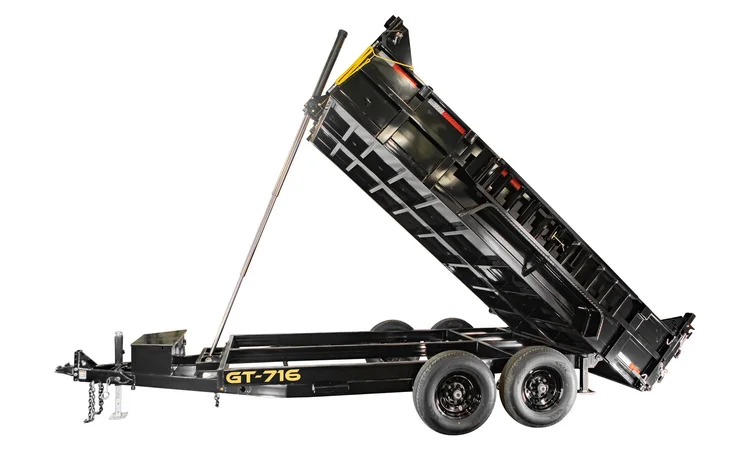

Style - Low-Pro | Width - 7ft. / 83" | Length - 16ft. / 168" | GVWR - 14000lbs. | GAWR - 7000lbs. |
Curb Weight - 4855lbs. | Payload - 9145lbs. | Dump Capacity - 10000lbs. | Tongue - 2" X 5" Tube | Tongue Weight (est.) -
580lbs. | Overall Length - 246" |
CROSS MEMBERS (16" ON CENTER) - 2" X 3" TUBE | LENGTH - 16FT. / 192" | WIDTH - 7FT. / 82.5" |
SIDEWALL HEIGHT - 24" | FLOOR HEIGHT - 29" | COUPLER HEIGHT - 18" |
-
Guarantee - OEM Component Warranty & 3 Year Limited
Structural
Coupler - 2-5/16" - Adjustable Coupler
Suspension - Equalized Leaf Spring
Fenders - 14ga. Formed Treadplate
Stake Pockets - 2" X 4" Tube
Gussets - Front & Rear 2" X 12" Dimension for Wall
Extension
Axles - Tandem - EZ Lube w/Galvanized Components
Tires - 16" Radial
Wheels - Black Powder Coat
Jack - Adjustable 7000lb., Top Wind Drop Leg
Spare Tire Mount - Standard Mount
Floor & Walls - 10ga. Smooth Steel
Battery - Interstate Deep Cycle Marine Battery
Electric Plug - 7-Pin Round
Wiring Harness - 3-Piece Plug & Play
Lighting - Amber & Red LED
Paint Finish - High Gloss Black Powder Coat

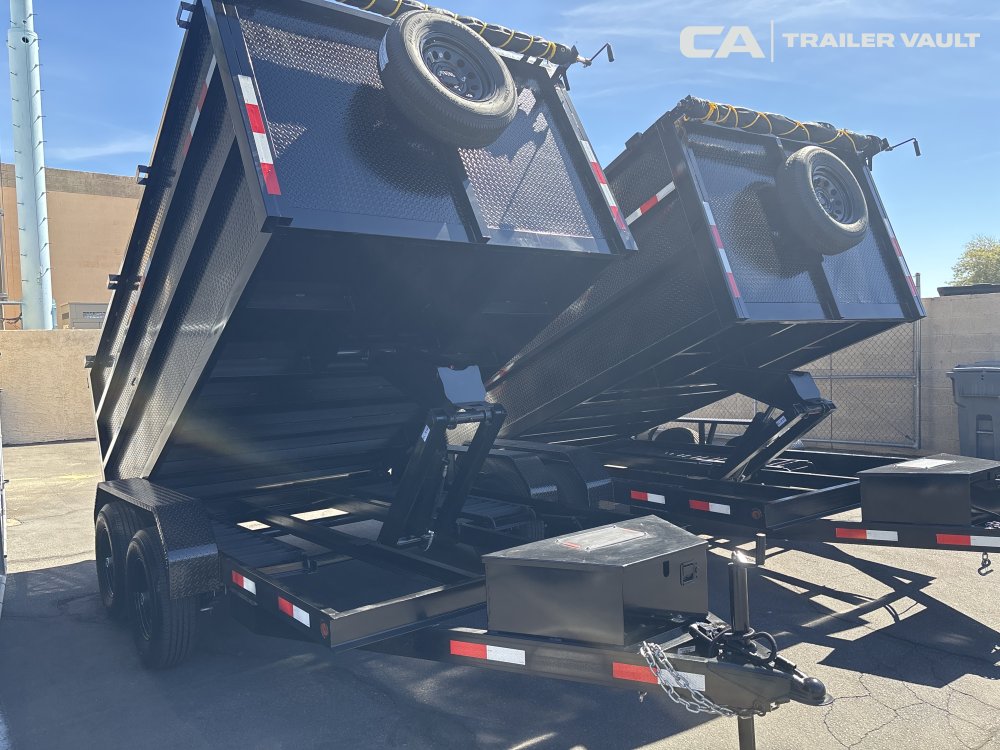

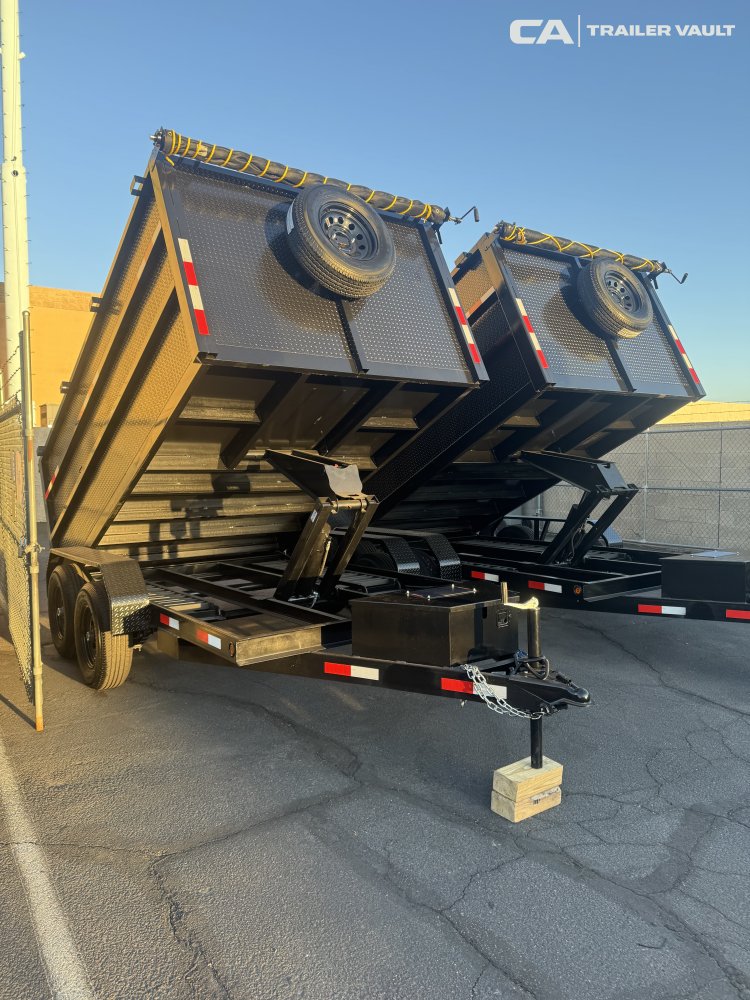

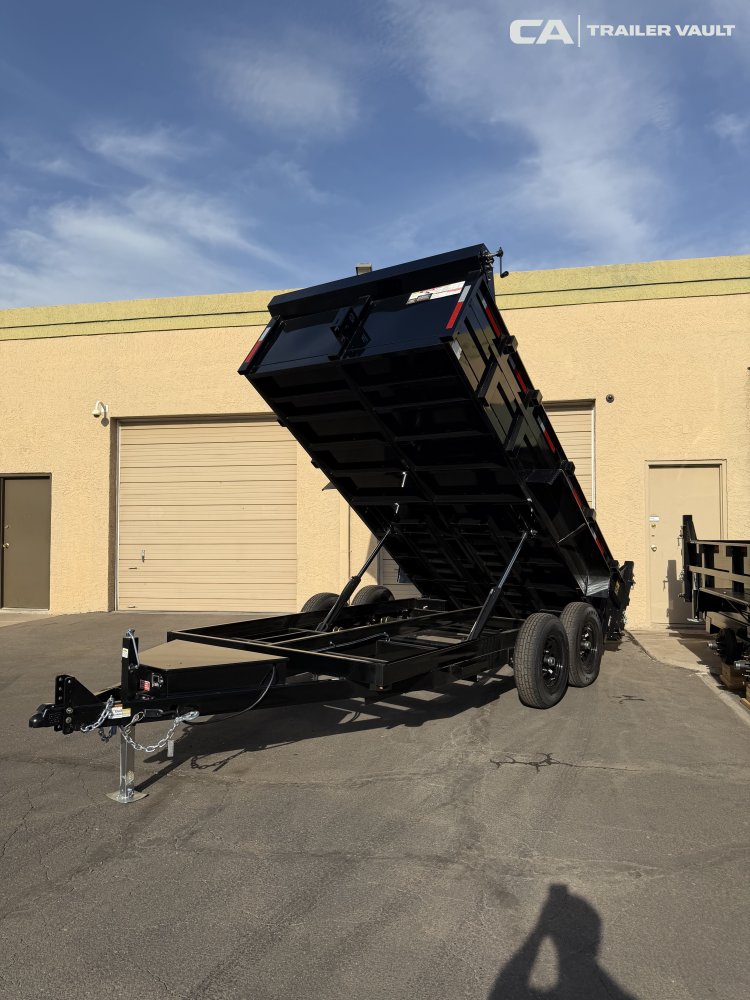

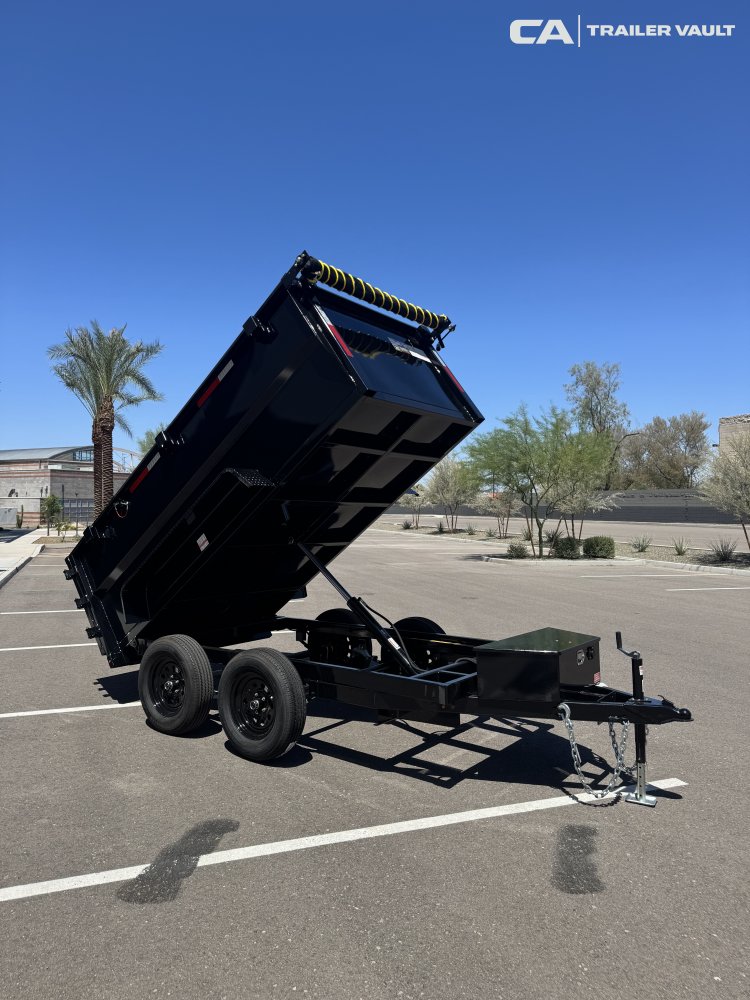

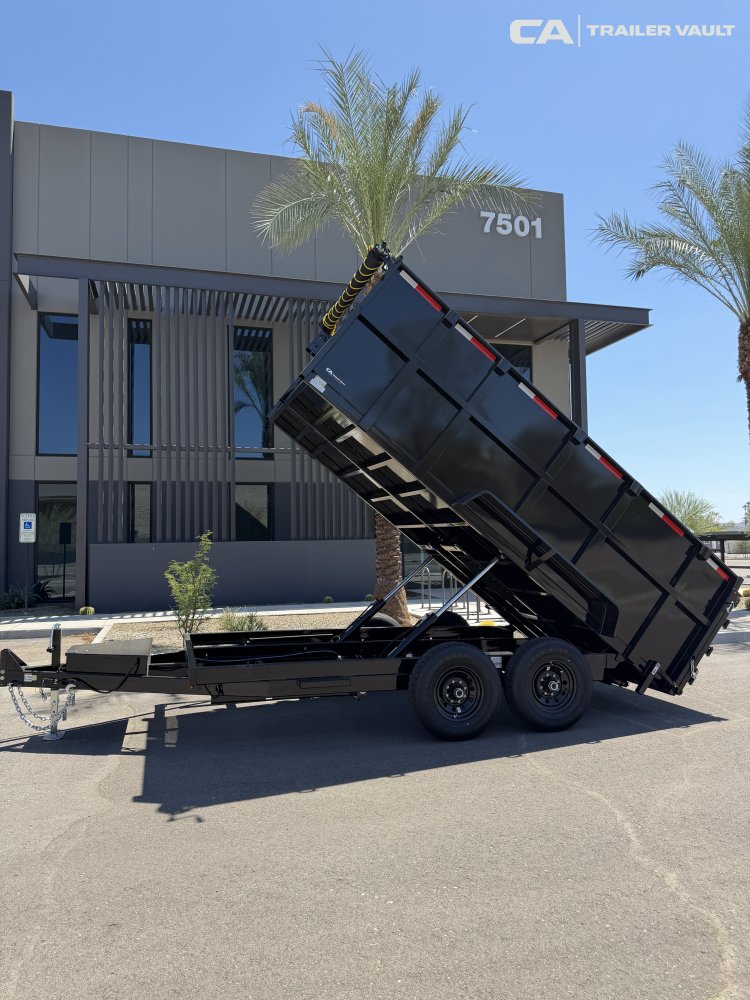

Lift System - 3-Stage Telescoping
Power Unit - 12v DC Hydraulic Pump - (3200 PSI Pwr Up)
(0 PSI Pwr Down)
Control Box with Key Lock - Easy Front Access
Ramps - 80" C-Channel Fender mounted ramps
D-Rings - (5) 5000lb. D-Rings Welded Into Floor
Integrated Tarp Mount - Tarp Kit Ready
Safety Chains - (2) Forged Slip Hook - 5/16"x35" 11700lbs.
Cap
Our Trusted Partners:

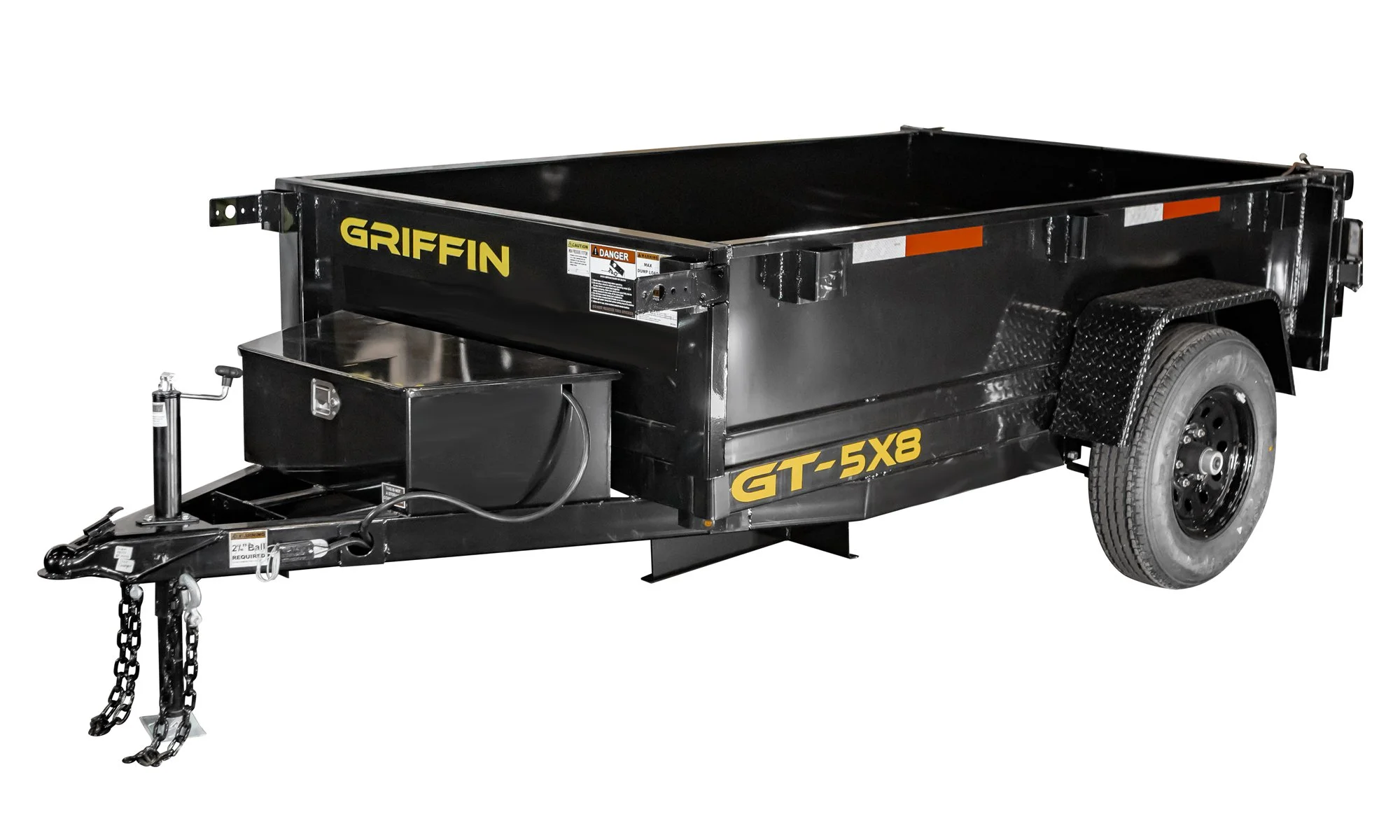

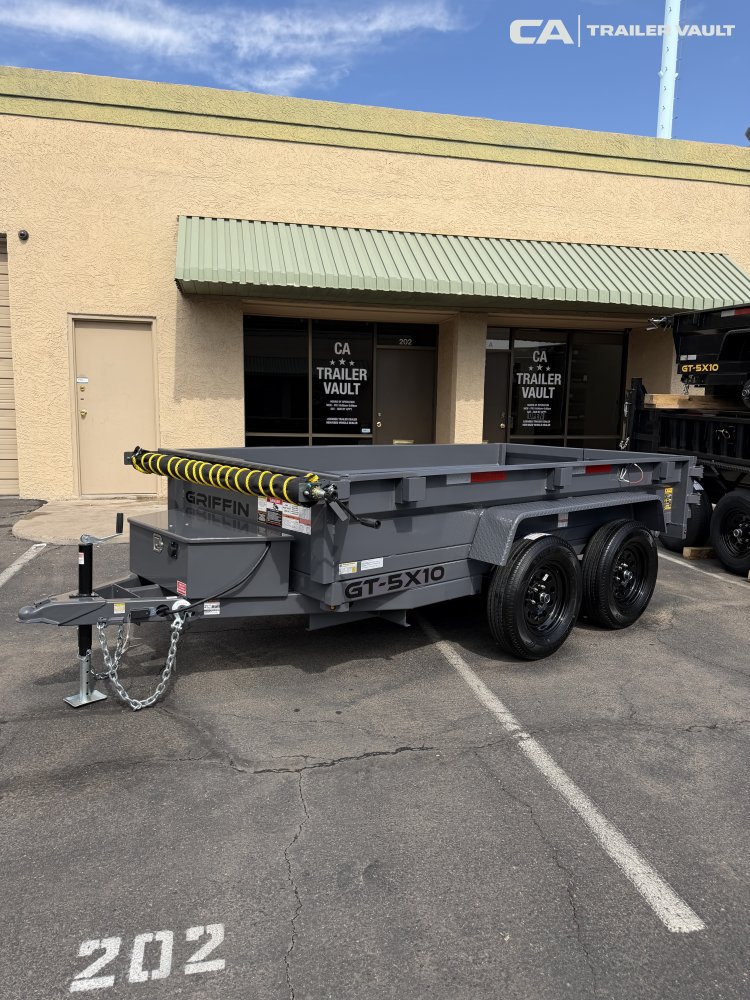

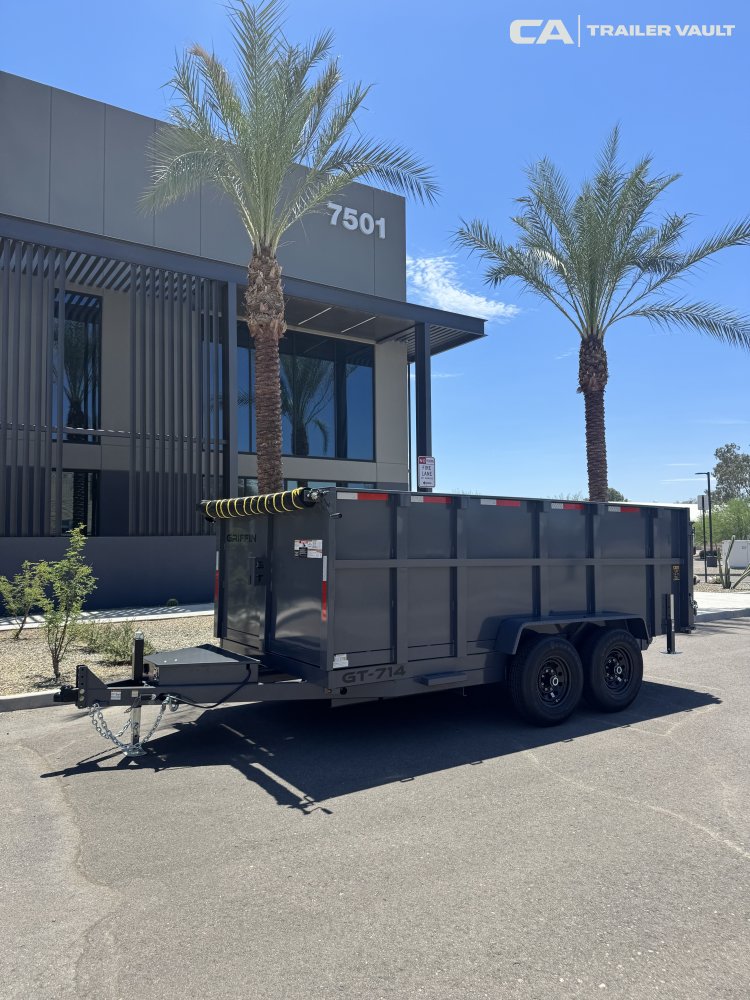

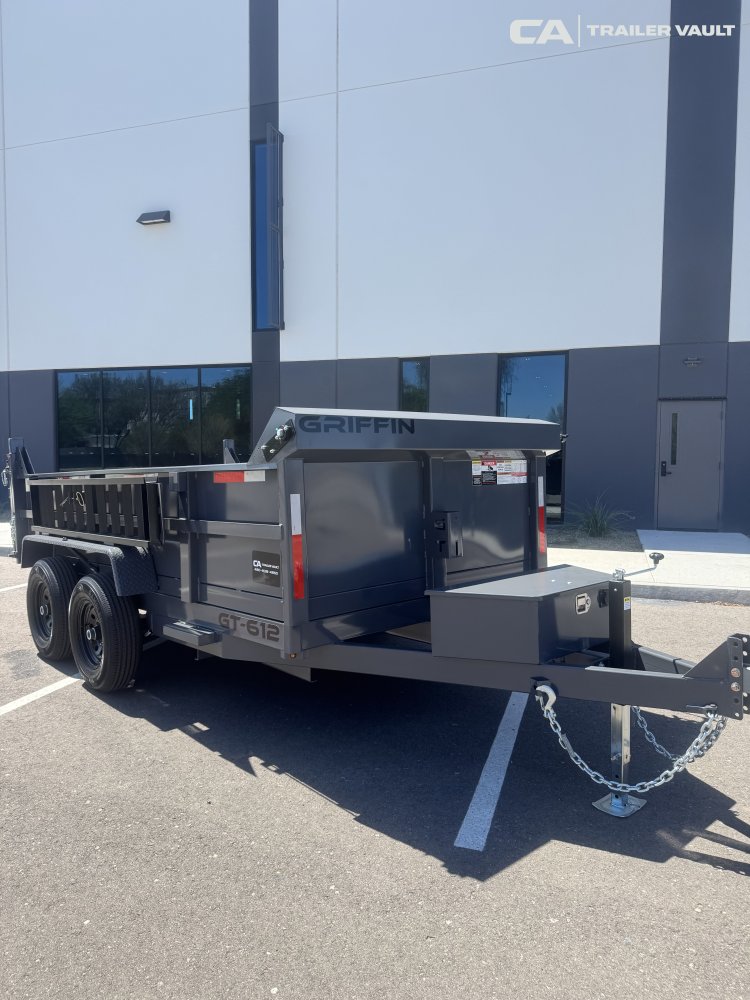

Griffin Trailers® began from a foundation in steel that stretches back to 1969, when Sharp Steel first opened its doors. Decades later, that expertise evolved into Chubb Steel, a family-owned, faith-based company built on craftsmanship, integrity, and American manufacturing. Out of that lineage, the Griffin Trailer™ line was launched in 2006 with a clear purpose: to set a new standard in hydraulic dump trailers. Since then, their Elkhart, Indiana facility has produced tens of thousands of trailers, each engineered with the same steel-first mindset and commitment to real-world durability. For us, partnering with Griffin means more than just carrying a brand name — it means aligning with a company whose history, values, and innovation give us confidence to deliver lasting value to our customers in Arizona. Their proven track record, backed by a 3-Year Limited Structural Warranty and direct parts support, ensures that when our customers invest in a Griffin trailer, they’re getting the benefit of generations of steelmaking expertise and a manufacturer who stands behind every product. By bringing Griffin Trailers® to our market, we connect our community to a partner that embodies strength, trust, and long-term reliability — the same values that drive our business every day.
Our Experience
Before we ever sold a trailer, we spent years learning what makes a deal fair, what makes equipment dependable, and what makes customers come back. We weren’t taught shortcuts — we were taught standards. Every lesson, every transaction, and every handshake built the foundation for how we do business today. That’s why at CA Trailer Vault™, selling isn’t about pressure — it’s about trust. We know the value of quality because we’ve seen what happens when it’s missing. Our trailers we sell aren’t just built strong; they’re backed by a commitment to honesty and service that never cuts corners.
Our Mission
We started as workers who needed trailers — now we’re owners who provide them. That perspective makes us different. We know what customers demand, we’ve been taught by some of the best, and we’re committed to delivering top-tier trailers that are built to last. At CA Trailer Vault™, this isn’t just a business — it’s a mission to dominate the trailer and dump trailer industry by delivering unmatched quality and service to every customer we serve.
Across the Nation
Since launching, we’ve invested everything into mastering this business. We’ve traveled across the United States, learning from the best trailer manufacturers, building partnerships with trusted builders in California, and now expanding into the Midwest & West Coast. Every connection we’ve made is built on one standard: partner only with the best.
From Experience to Innovation
Because we came up in the fields, we know trailers inside and out. We’ve loaded them, hauled with them, and pushed them to their limits on real job sites. That firsthand experience showed us the gaps in the trailer industry — and the need for stronger, more reliable equipment that truly meets the demands of workers and families. That’s why CA Trailer Vault™ exists: to raise the bar for quality, value, and service.
Built from the Ground Up
CA Trailer Vault™ was founded by Angelo Giuliano & Colin Smith, two young entrepreneurs who built their careers the hard way — out in the field. Before launching our dealership, we spent years grinding through demolition jobs, junk removal, construction work, and moving services. We were the guys doing the heavy lifting, and we quickly learned one truth: the right trailer makes all the difference.
